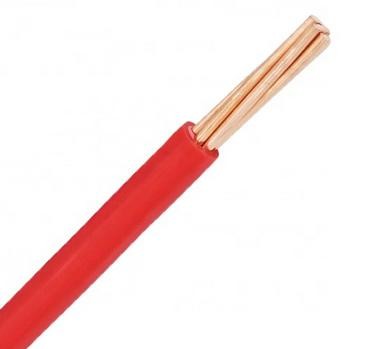

Flexible Heat Resistant Electrical Wires & Cable PVC Compound Insulation

Conductor : bare copper conductor, fine wired stranded, class 5

Application : dry areas

Nominal voltage : Uο/U = 300/500 V

Insulation : PVC compound

Behaviour in fire : IEC 60332-1

Standards : HRN HD 21.5 S3 IEC 60227-5 DIN VDE 0281 part 5

Place of Origin : Guangzhou, China

Brand Name : SUNWIN

Certification : ISO9001, ISO14001, OHSAS18001

MOQ : Negotiable

Price : Negotiable

Packaging Details : 100 m / tied, or customized

Delivery Time : 10 day

Payment Terms : 30% deposit, the balance is settled on the delivery date

Supply Ability : 100,000 m / month

Contact Now

Flexible Heat Resistant Electrical Wires & Cable PVC Compound Insulation

Application

Flexible cable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc., as long as the cable is adapted to essential specifications of the device.


Standards
HRN HD 21.5 S3
IEC 60227-5
DIN VDE 0281 part 5

Construction

Conductor: bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (nominal diameter 0,20 mm)
Insulation: PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor
Sheath: PVC compound TM2 for flexible insulated conductors acc. to DIN VDE 0207 part 5 / HD 21.1 S4
sheath colour: white or black
Core colour marking: HRN HD 308 S2 / VDE 0293-308
Flexible Heat Resistant Electrical Wires & Cable PVC Compound Insulation

Technical data

Temperature range:

during installationi: +5 °C up to +70 °C
fixed installed: -30 °C up to +70 °C
at short circuit of max. 5 s: up to 150 °C
ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 300/500 V
Test voltage: 2000 V
Minimal inner bending radius: 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
Behaviour in fire: IEC 60332-1

Dimensions – number of cores x conductor cross-section Construction of individual conductor External diameter Insulation thickness Sheath thickness Conductor resistance at 20 °C Specific el. resistance of insulation at 70 °C Cu weight Cable weight Packing**
nominal min-max. nominal nominal max. min. approx.
mm² n x mm mm mm mm Ω/km MΩkm kg/km kg/km
2 x 0,5 16 x 0,20 4,6 - 5,9 0,5 0,6 39,0 0,012 9,6 41 c.100
2 x 0,75 24 x 0,20 4,9 - 6,3 0,5 0,6 26,0 0,010 14,4 48 c.100
3 G 0,5 16 x 0,20 4,9 - 6,3 0,5 0,6 39,0 0,012 14,4 48 c.100
3 G 0,75 24 x 0,20 5,2 - 6,7 0,5 0,6 26,0 0,010 21,6 57 c.100
4 G 0,5 16 x 0,20 5,4 - 6,9 0,5 0,6 39,0 0,012 19,2 58 c.100
4 G 0,75 24 x 0,20 5,7 - 7,3 0,5 0,6 26,0 0,010 28,8 70 c.100
5 G 0,75 24 x 0,20 7,1 0,5 0,6 26,0 0,010 36,0 87 c.100

*) G =with yellow-green protective conductor x= without yellow-green protective conductor

**) Packing: c.100 = coil 100 m
