Copper Electrical Wire Application

For internal wiring or supply cords to electrical apparatus, particularly for use in high temperature zones such as lighting applications. Not suitable for outdoor use.

Copper Electrical Wire Standards

The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

Copper Electrical Wire Construction

Conductor
Class 5 flexible copper conductor according to BS EN 60228

Insulation
PVC (Polyvinyl Chloride) Type TI3 according to BS EN 50363

Sheath
PVC (Polyvinyl Chloride) Type TM3 according to BS EN 50363

Copper Electrical Wire Characteristics

Voltage Rating (Uo/U)
300/500V

Temperature Rating
Flexed: 0°C to +90°C

Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 10 x overall diameter

Core Identification
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue

Sheath Colour
White

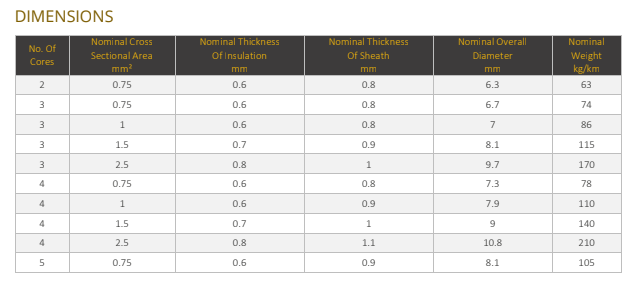

Size, Weight & Electrical Specification
