Bare Copper Conductor Insulated Electrical Wire For Kitchens And Offices
Insulated Electrical Wire Application
Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.
Insulated Electrical Wire Standards
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.
Insulated Electrical Wire Construction
Conductor
Class 5 flexible copper conductor according to BS EN 60228
Insulation
PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363
Sheath
PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363
Insulated Electrical Wire Characteristics
Voltage Rating (Uo/U)
300/500V
Temperature Rating
Flexed: 5°C to 70°C
Minimum Bending Radius
Flexed: 8 x overall diameter
Core Identification
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour
White, Black

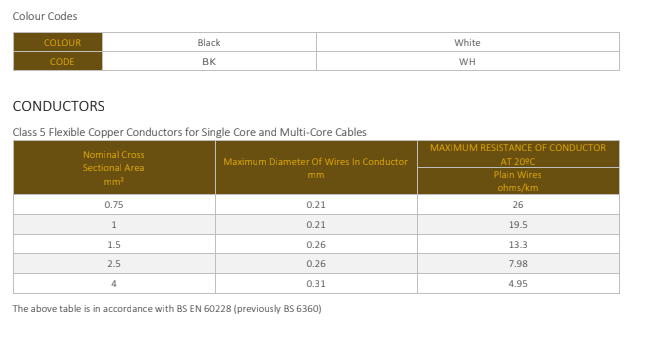

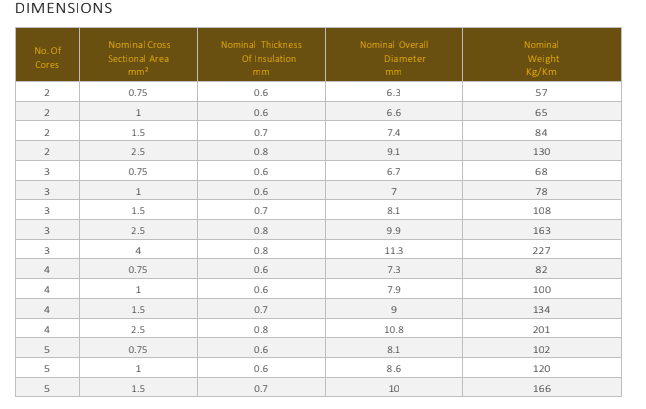

Size, Weight & Electrical Specification
