Aluminium Underground Insulated Electrical Wire PVC Jacket Four Core

Name: Aluminium Underground Insulated Electrical Wire PVC Jacket Four Core
Brand: SUNWIN
Price: 1.00 USD

China Aluminium Underground Insulated Electrical Wire PVC Jacket Four Core wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : SUNWIN

Model Number : Insulated Electrical Wire

Supply Ability : 10000 Meter/Meters per Day

Packaging Details : 100 meters per roll or iron-wood drum package

MOQ : 1000 Mile/Miles

Price : $1.00 - $100.00 / Miles

Insulation Material : PVC

Type : Insulated Electrical Wire

Application : Construction

Conductor Material : Copper

Core : Four Core

Port : Guangzhou

Contact Now

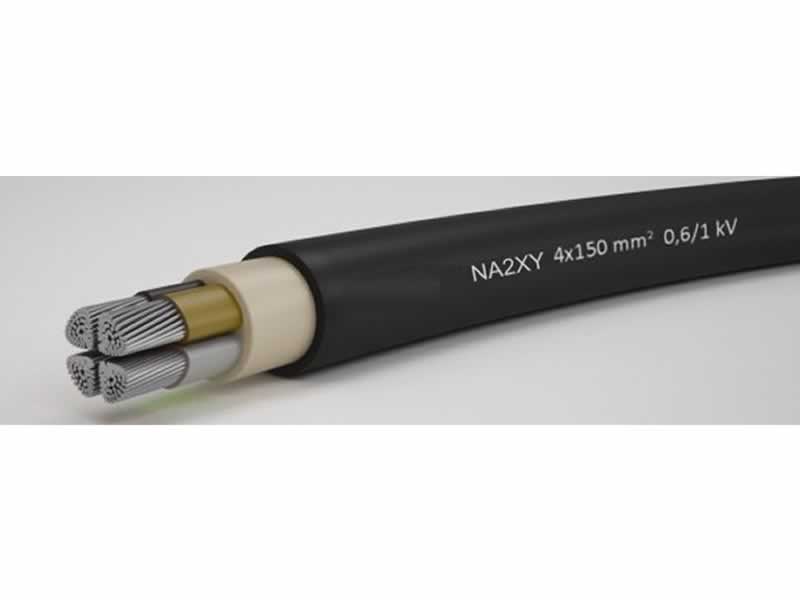

NA2XY,0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables

NA2XY (0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Application:
Kabel NA2XY is widely used In ground, outdoors. in concrete, indoors and in cable ducts where no mechanical damage is to be expected

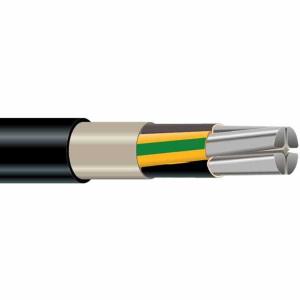

NA2XY Cable Construction:
Conductor of solid aluminium wires - insulation of cross-linked polyethylene (XLPE) -extruded or lapped inner covering - PVC sheath.

Conductor material	Aluminum
Insulation	XLPE (chemical)
Outer sheath	PVC
Rated Voltage Uo/U (Um)	0.6/1 kV
Frequence	50Hz
Max. system voltage, 1-phase grounded	0.7kV
Max. system voltage: 1 phase both phases grounded (Um)	1.4kV
Max. system voltage 3 phases (Um)	1.2kV
Max. conductor temperature in service	90°C
Minimum installation temperature	-5°C
Short-circuit max. conductor temperature	250°C

NA2XY Technical Parameter:

No. of cores x nom. cross section	max. conductor resistance	current rating in the ground	current rating in the air 1)	outer diameter	AL- number	total weight
mm²	Ohm/km	A	A	appr. mm	appr. kg/km	appr. kg/km
1 × 25 RE	1.200	177	136	11,5	73	191
1 × 35 RE	0.868	212	166	12,5	102	231
1 × 50 RM	0.641	252	205	14,5	145	292
1 × 70 RM	0.443	310	260	16,3	203	390
1 × 95 RM	0.320	372	321	18,1	276	480
1 × 120 RM	0.253	425	376	19,8	348	556
1 × 150 RM	0.206	476	431	21,5	435	675
1 × 185 RM	0.164	541	501	23,8	537	830
1 × 240 RM	0.125	631	600	26,3	696	1.059
1 × 300 RM	0.100	716	696	29,0	870	1.260
1 × 400 RM	0.078	825	821	31,8	1.160	1.560
1 × 500 RM	0.061	952	971	36,5	1.450	1.949
1 x 630 RM*	0.047	1.102	1.151	41,9	1.827	2.386

* conductor is not compressed
→ Other cross-sections on request.
1) Basic rated current acc. to DIN VDE 276-603 (HD 603)
Technical values can change. No responsibility is therefore taken for correctness.

0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables,NA2XY specifications(data sheet,table,full form)
