Heavy Load 750V Mineral Insulated Copper Sheathed Cable Smoke Free Non Toxicity

Name: Heavy Load 750V Mineral Insulated Copper Sheathed Cable Smoke Free Non Toxicity
Brand: SUNWIN
Price: 1 USD

Conductor : Class 1 Solid plain copper conductor

Insulation : Magnesium Oxide

Sheath : Plain copper

Voltage Rating : 500V

Temperature Rating : -10°C to 250°C

Sheath Colour : Plain copper

Place of Origin : Guangzhou, China

Brand Name : SUNWIN

Certification : ISO9001, ISO14001, OHSAS18001

MOQ : Negotiable

Price : Negotiable

Packaging Details : 100 m / tied, or customized

Delivery Time : 10 day

Payment Terms : 30% deposit, the balance is settled on the delivery date

Supply Ability : 100,000 m / month

Contact Now

Heavy Load 750V Mineral Insulated Copper Sheathed Cable Smoke Free Non Toxicity

APPLICATION

A 500V light duty mineral insulated cable designed to give the ultimate fire performance. Used in power and control circuits providing circuit integrity to 950°C. Suitable for Oil, Gas and Petroleum industries, airports, emergency lighting system and fire alarm systems.

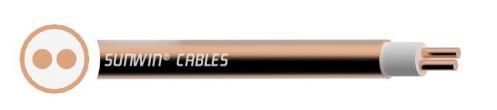

CONSTRUCTION

Conductor

Class 1 Solid plain copper conductor

Insulation

Magnesium Oxide

Sheath

Plain copper

CABLE STANDARDS

BS EN 60702 Part 1

BS 5266, BS 8519 Cat 1 and 2, BS 8434-2, BS 6387 C, W and Z

BS 8491, BS EN 50200-PH30/60/120

BS 5839-1 Enhanced (26.2e)

The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Sunwin Cables laboratory.

Cable performance in respect of conductor resistance, construction quality (workmanship),dimensional consistency, and other parameters are verified to published standardsand approved product drawings. Conformance to RoHS (Restriction of the use ofHazardous Substances) is determined and confirmed.

CHARACTERISTICS

Voltage Rating

500V

Temperature Rating

-10°C to 250°C

Minimum Bending Radius

6 x overall diameter

Sheath Colour

Plain copper

DIMENSIONS

Sunwin PART NO.	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
A6M020010PC	2	1	5.1	105
A6M020015PC	2	1.5	5.7	131
A6M020025PC	2	2.5	6.6	180
A6M02004PC	2	4	7.7	262
A6M030010PC	3	1	5.8	136
A6M030015PC	3	1.5	6.4	168
A6M030025PC	3	2.5	7.3	222
A6M040010PC	4	1	6.3	162
A6M040015PC	4	1.5	7	203
A6M040025PC	4	2.5	8.1	286
A6M070015PC	7	1.5	8.4	310
A6M070025PC	7	2.5	9.7	433

CONDUCTORS

NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC ohms/km
1	18.1
1.5	12.1
2.5	7.41
4	4.61

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	SINGLE PHASE AC OR DC Amps	THREE PHASE AC Amps
2	1	17	-
2	1.5	21	-
2	2.5	28	-
2	4	36	-
3	1	-	14
3	1.5	-	17
3	2.5	-	23
4	1	-	14
4	1.5	-	17
4	2.5	-	23
7	1.5	12	-
7	2.5	16	-

Voltage Drop

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	SINGLE PHASE AC OR DC mV/A/M	THREE PHASE AC mV/A/M
2	1	42	-
2	1.5	28	-
2	2.5	17	-
2	4	10	-
3	1	-	36
3	1.5	-	24
3	2.5	-	14
4	1	-	36
4	1.5	-	24
4	2.5	-	14
7	1.5	28	-
7	2.5	17	-

* Method of cable support should withstand a similar temperature and donation to that of the cable.

The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication. When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
