LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating

Name: LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating
Brand: SUNWIN
Price: 1 USD

Name : Mineral Insulated Cable

Insulation : ETP solid (not stranded) copper cores

Sheath : Magnesium Oxide (MgO)

Voltage Rating : DHP copper sheath

Outer Sheath : LSZH additional outer covering

General Standards : IEC 60754-2

Place of Origin : Guangzhou, China

Brand Name : SUNWIN

Certification : ISO9001, ISO14001, OHSAS18001

MOQ : Negotiable

Price : Negotiable

Packaging Details : 100 m / tied, or customized

Delivery Time : 10 day

Payment Terms : 30% deposit, the balance is settled on the delivery date

Supply Ability : 100,000 m / month

Contact Now

LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating

FIRECEL MI are intended to be installed in critical safety circuits which are used to operate under fire conditions in severe applications where the mechanical cables performances are primarily required.

Production process foresee many steps of diameter reduction (both drawings and rollings) separated by high temperature annealing.

Strong compression of MgO powder (density about 2 g/cm3) allows very high values of insulation resistance (also if burned, 180° bent or flattened) and thermal conductivity. Therefore current ratings are higher than soft skin cables, especially at high temperature.

Cable Uses

Drilling & Tunnelling
Emergency Lighting
Fire Alarms
Fire Detection
Hazardous Areas
Historical Buildings
Industrial Plants
Harsh Environments
Mining

Fire Standards

Our ’Enhanced’ MI cables are manufactured in the European Union in accordance with British Standards BS EN 60702 –1: 2002 and EN 50200:2013 Clause 26.2. They hold LPCB-certification.

LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating

Cable construction

Conductor	ETP solid (not stranded) copper cores, from 1 to 400 mm2, melting point 1082°C
Insulation	Magnesium Oxide (MgO) as electrical insulation, high performance at high temperature (melting point 2600°C)
Metallic Outer Sheath	High quality DHP copper sheath, manufactured starting from tubes extruded and drawn only (not welded), melting point 1082°C
Outer Sheath	LSZH additional outer covering. Such flame retardant polyolefin is characterised by high performance in corrosion resistance and low smoke emission

General Standards

Basic Design	IEC 60702-1 & 2
Fire resistant	BS 6387 (cat. C-W-Z) BS 8434-2 EN 50200 annex E IEC 60331-21
Acid gas emission	IEC 60754-2
Smoke density	EN 61034-2

Available in the following colours: black, red & white with any other colour available for manufacture.

“AC”clips packed in 100`s “rsfj”double clips packed in 50`s glands packed in 100`s

Prefix to product code for ordering purposes.

Carriage paid on all orders over £250.00 nett value.

Flame retardant glands red also available on request
Locknuts for glands charged extra m20 locknuts
30150 the recommended stripping tool
T3964 cable cutter for o.D. 50.0mm or 14.0mm max

Product Tags:

micc cable

mineral insulated wire

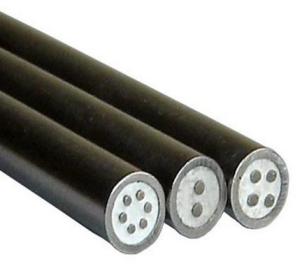

LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating Images
