Insulated Solid Copper Wire Application

Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment.

Insulated Solid Copper Wire Standards

The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

Insulated Solid Copper Wire Construction

Conductor
Class 5 flexible copper conductor according to BS EN 60228

Insulation
PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363

Sheath
PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363

Insulated Solid Copper Wire Characteristics

Voltage Rating (Uo/U)
300/300V

Temperature Rating
Flexed: +5°C to +70°C

Minimum Bending Radius
Flexed: 6 x overall diameter

Core Identification
2 core: Blue Brown
3 core: Blue Brown Green/Yellow

Sheath Colour
White Black

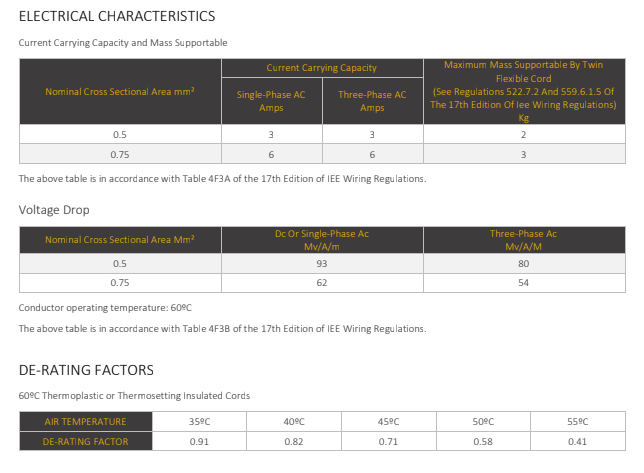

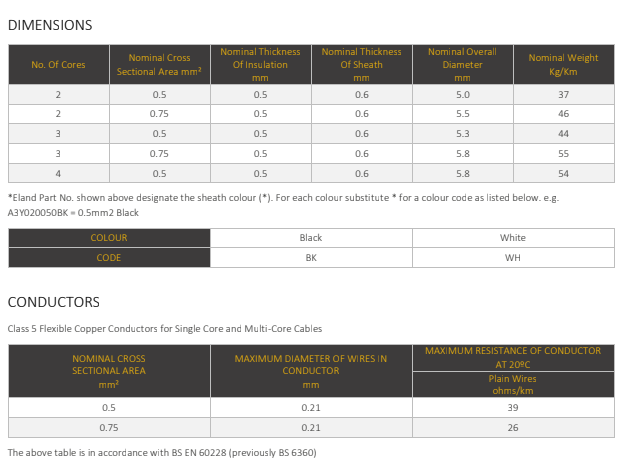

Size, Weight & Electrical Specification

pvc coated electrical wire

electric copper cable

Radios Insulated Solid Copper Wire / Multi Cores Copper Electrical Cable Images
